ARF-100

Site survey tool for ABAX system

Meet the successor ARF-100!



ARF-200

Radio signal strength tester

CHECK

ARF-100 is a radio signal level tester, designed to work with controllers of the ABAX two-way wireless system. It is used to test the strength of radio signal received by the controller from the tester and by the tester from the controller. It helps therefore to find an optimum location for the installation of any ABAX system wireless device, which greatly facilitates designing the system in the existing premises. The tester is provided with 9 LEDs, 7 of which make up an indicator representing percentage of the radio signal strength. Another indicator is used to show the operation mode, that is, the direction from which the signal is being received). The last LED indicates the type of power supply (battery or external) of the wireless device, whose work is simulated by the tester.

  • diagnostic site survey tool to facilitate wireless communication conditions testing
  • bidirectional communication: indication of both received signal level, and signal level transmitted by ARF-100 as seen by the controller unit
  • operating mode selection: simulation of 3V lithum battery powered devices and remaining devices
discontinued

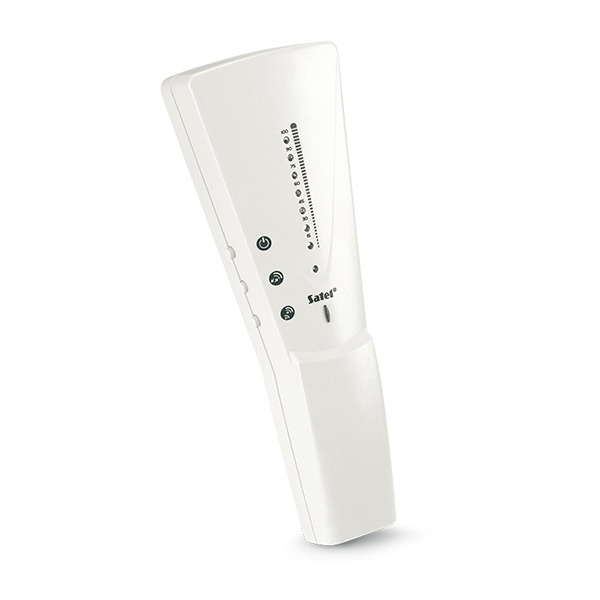

ARF-100
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
general information manual
updated: 2017-10-05
130 KB
