APD-100

Wireless PIR detector

Meet the successor APD-100!



APD-200

Wireless PIR motion detector

CHECK

The APD-100 wireless detector is used to detect motion in the protected area. It is designed to work as part of the ABAX two-way wireless system. The use of digital detection algorithm and high quality infrared channel provides high immunity to false alarms. Owing to the PET function, the device can provide protection even when small animals are within its range. APD-100 is provided with a dual element PIR sensor and a temperature compensation algorithm. The three-step sensitivity adjustment is remotely configurable using the DLOADX software. The detector comes with tamper protection and battery charge control function. The device is compatible with INTEGRA 128-WRL control panel, ACU-120, ACU-270 and the older ACU-100, ACU-250 controllers, as well as with ARU-100 radio signal repeater. It meets the EN 50131-2-2 requirements for Grade 2 security.

The detector is provided with a bracket for wall or ceiling mounting, which provides a wide range of coverage area adjustment.

  • EN50131 Grade 2 compliance
  • high quality sealed optical path
  • three step remote sensitivity adjustment
  • battery diagnostics
  • remote configuration
  • adjustable mounting bracket included
  • tamper protection against opening and removing from mounting surface
  • up to 15kg pet immunity configuration option
discontinued

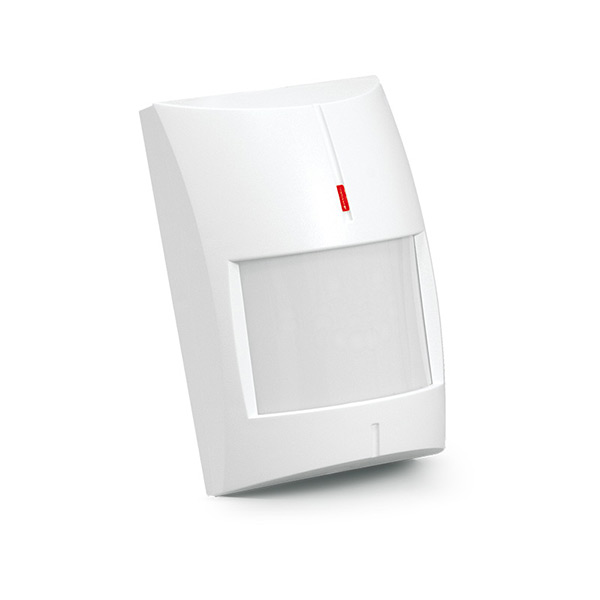

APD-100
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
general information manual
updated: 2018-02-26
613 KB
