AMD-100
Wireless magnetic contact
AXD-200
Wireless multipurpose detector
CHECK
AXD-200
Wireless universal detector
CHECK

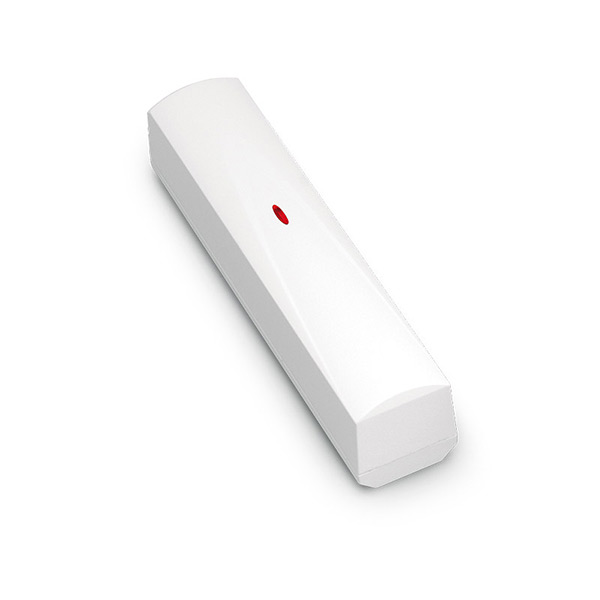

Magnetic contact detectors belong to the essential perimeter security devices. They are used to protect doors, windows, etc. by triggering alarm when they are open. AMD-100 is a wireless model designed for operation as part of the ABAX two-way wireless system. The use of two built-in reed switches allows you to choose the method of installation: the magnet interacting with the sensor can be placed either under or at the side of the detector, depending on the needs. The device comes with tamper protection, test mode LED indicator and an additional input for connecting another NC type detector. AMD-100 is compatible with INTEGRA 128-WRL control panel, ACU-120, ACU-270 and the older ACU-100, ACU-250 controllers, as well as with ARU-100 radio signal repeater. It meets the requirements of EN 50131-2-6 for Grade 2.
The AMD-100 detector is available in two color versions: white (AMD-100) and brown (AMD-100 BR).
- two reed contacts for easy installation
- terminals for connecting external detector
- remote configuration
- tamper protection
discontinued
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
general information manual
updated: 2017-09-12
484 KB
Additional input sensitivity
312 ms
Battery working time (in years)
Estimated 3 years
Enclosure dimensions
24 x 110 x 27 mm
Operating temperature range
-10…+55 °C
Standby mode current consumption
50 µA
Max. current consumption
16 mA
Operating frequency band
868,0 ÷ 868,6 MHz
Radio communication range (in open area)
up to 500 m m
Environmental class according to EN50130-5
II
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6, EN 50131-5-3
Security grade according to EN50131-2-6
Grade 2
