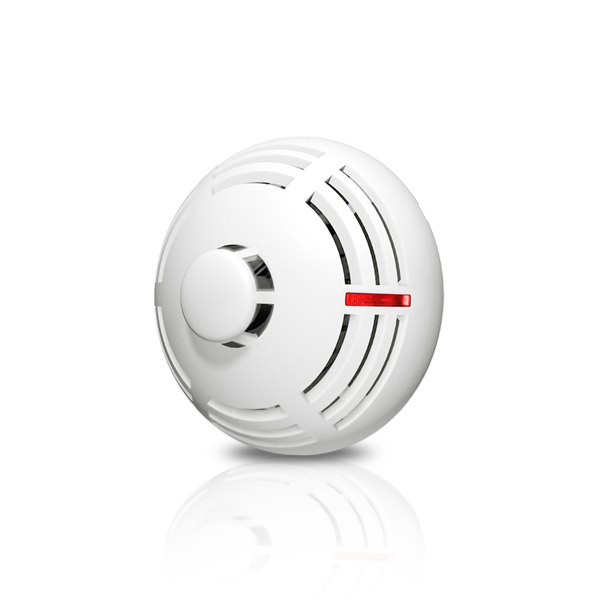

ASD-110
Wireless smoke and heat detector
ASD-200
Wireless smoke and heat detector
CHECK
ASD-200
Wireless smoke and heat detector
CHECK
The ASD-110 multisensor detector enables detection of the early stages of fire development when visible smoke appears and/or temperature rise occurs. It can work as a stand-alone device or as part of the ABAX two-way wireless system An optical method is used for the detection of visible smoke. When the concentration of smoke in the optical chamber exceeds a given threshold, an alarm is triggered. The smoke sensor operating parameters are modified depending on the temperature changes recorded by the thermal sensor (thermistor).
Features:
- LED indicator for test mode signaling
- tamper contact reacting to enclosure opening and detachment from the mounting surface
- remotely activated test mode
- self-diagnostic functions (checking the status of battery and optical chamber)
- IP code: IP20
Delivery set:
Detector, dust cover, CR123A lithium battery, mounting elements, user manual
discontinued
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
general information manual
updated: 2011-11-29
223 KB
Battery working time (in years)
Estimated 2 years
Enclosure dimensions
ø108 x 61 mm
Operating temperature range
0…+55 °C
Standby mode current consumption
85 µA
Operating frequency band
868,0 ÷ 868,6 MHz
Radio communication range (in open area)
up to 500 m m
Class according to EN 54-5 (heat sensor)
A1R
Minimum static response temperature
54 °C
Maximum static response temperature
65 °C
