LCD keypad

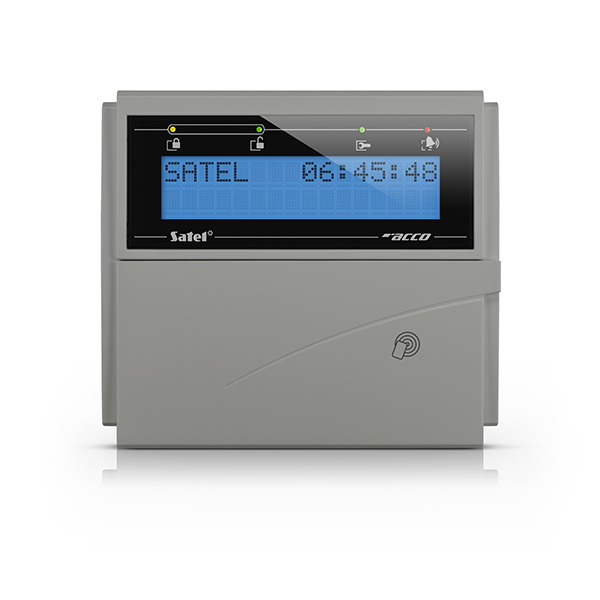

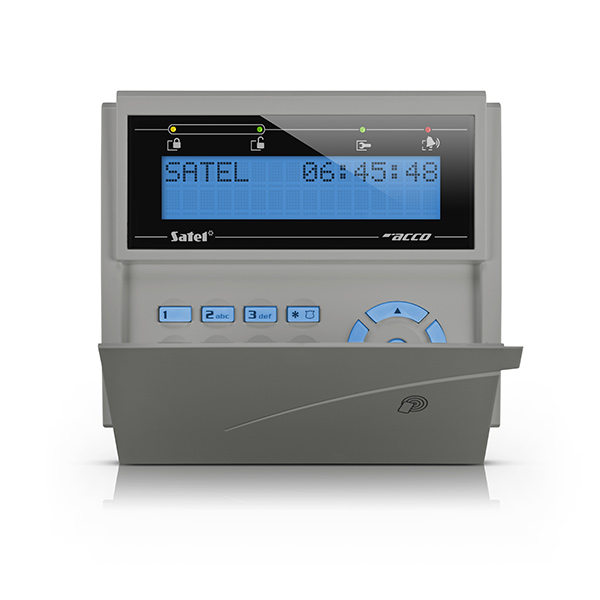

ACCO-KLCDR-BG is a keypad being part of the ACCO and ACCO NET access control system. Its operating modes are indicated by displayed messages as well as by LED indicators. The keypad allows user identification by means of code entered using the keys or by using personal proximity passive transponders, such as cards, tags, etc. Backlighting of the keys and LCD ensure comfortable use even in low light conditions.
The ACCO-KLCDR keypad is available in three versions differing in the color of the key and display backlight and the color of the housing:
- ACCO-KLCDR-W - white backlight, white housing
- ACCO-KLCDR-BW - blue backlight, white housing
- ACCO-KLCDR-BG - blue backlight, gray housing.
- large, easy to read backlit LCD display
- access authorization with code and/or proximity card
- support for cards, tags and other 125 kHz passive transponders
- LED indicators for door and controller status indication
- built-in buzzer for acoustic feedback
- display and keypad backlight
- tamper protection
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
Documentation
Certificates
Technical Data
Card based authorization
Yes
Code based authorization
Yes
Operating frequency
125 MHz
Enclosure dimensions
140 x 126 x 26 mm
Operating temperature range
-10…+55 °C
Nominal supply voltage (±15%)
12 V DC
Standby mode current consumption
60 mA
Max. current consumption
160 mA
Weight
236 g
Maximum humidity
93±3%
Supported card standards
UNIQUE, EM4001, EM4002, EM4003, EM4102
