INT-TSI-B

Touchscreen keypad

The INT-TSI keypad is a real command center for a smart alarm system. As its interface can be customized to individual user's needs, it provides a perfect solution both for people expecting ease of operation and for advanced users who make use of the extended system functionality.

  • capacitive glass touchscreen with 7" LCD

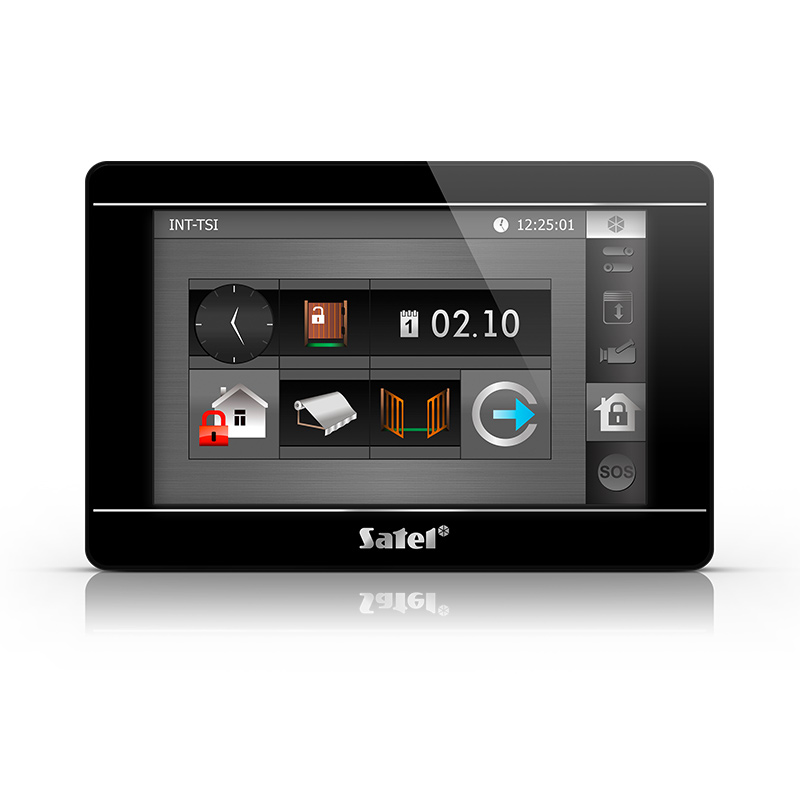

  • graphic operating interface, customizable to individual user's needs
  • an option to choose from a few graphics design
  • MACRO functionality to implement a sequence of actions using a single button

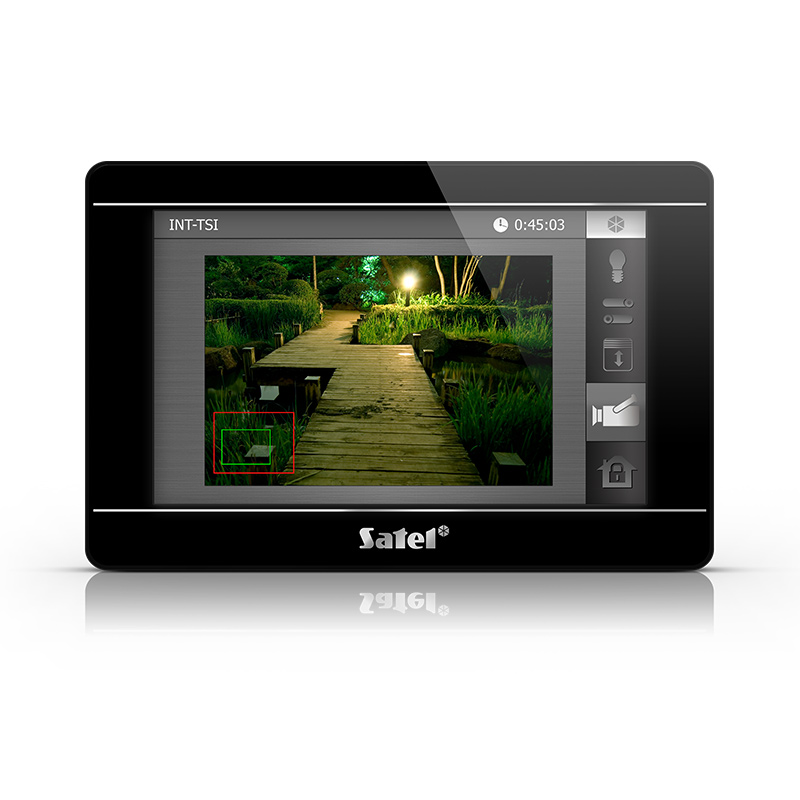

  • capability of viewing images from IP cameras (MJPG via HTTP and in v1.04: MPEG-4, H.264 via RTSP)
  • "Intercom" widget - video intercom functionality; cooperation with door stations supporting the SIP protocol
  • an additional keypad can be connected via Ethernet to each keypad connected to the bus - which makes it possible to double the number of keypads in the system

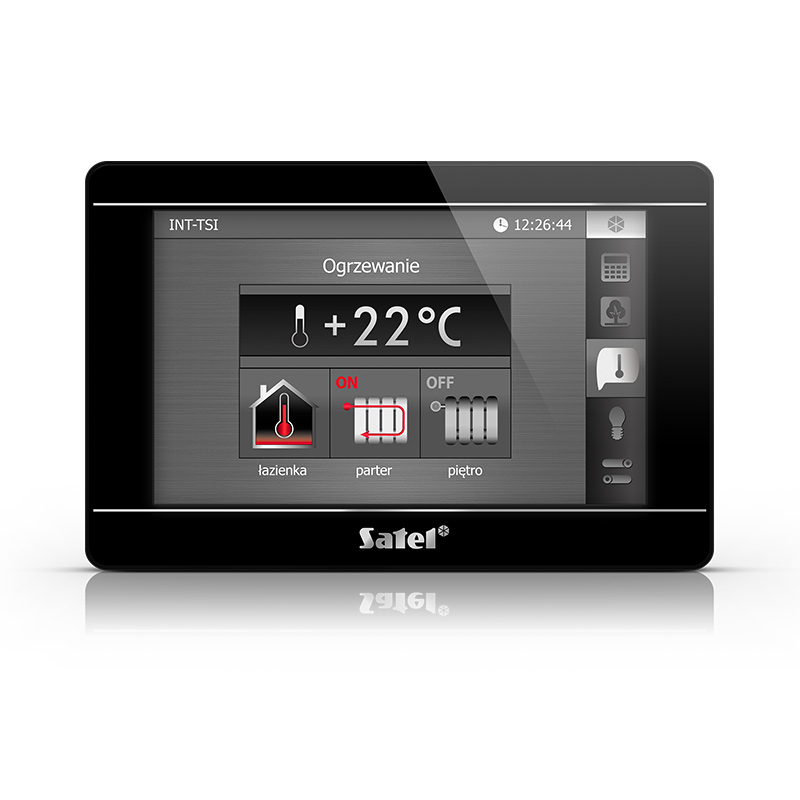

  • wide range of dedicated widgets for various functions, including weather widget to which forecast is downloaded from the openweathermap.org service
  • scalability of the widget size
  • capability to present the system state in the screensaver mode
  • photo frame function
  • capability of saving the user interface configuration directly from TSI Builder program to keypad over Ethernet
  • available in white (INT-TSI-W) and black (INT-TSI-B)

The operation of the "Intercom" widget in the INT-TSI keypad working with door stations supporting the SIP protocol was checked on various test sets. The best results were obtained with the following door station models:

  • 2N IP Solo - firmware version 2.44.1.57.4
  • 2N IP Force - firmware version 2.44.0.57.3
  • 2N IP One - firmware version 2.44.0.57.3
  • 2N IP Style - firmware version 2.44.0.57.3
  • 2N IP Base - firmware version 2.40.0.53.4
  • Akuvox R20A - firmware version 320.30.3.125
  • Akuvox R20BX2 - firmware version 220.30.3.7
  • Akuvox R20K - firmware version 220.30.1.102



Configuration of “Intercom” widget



EN-50131 GRADE 3 - certificate
INT-TSI-B
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.

Documentation

 int-tsi_sii_en.pdf
quick installer guide
updated: 2022-07-11
259 KB
go to
 int-tsi_ii_en_0516.pdf
installer manual
updated: 2016-06-07
2.63 MB
go to
 int-tsi_iu_en_0516.pdf
user manual
updated: 2016-05-09
1.23 MB
download
INT-TSI-B
tutorial
updated: 2015-03-20

go to
INT-TSI-B
mounting template
updated: 2013-11-15
53 KB
download
show all language versions

Software

 Picusto
multi-language
compiled: 2021-12-16
go to
 TSI Builder
Polish, English
compiled: 2023-11-09
go to

Certificates

  INT-TSI-B
EN-50131 GRADE 3 - certificate
updated: 2023-07-28
138 KB
download
  INT-TSI-B
EU declaration of conformity
updated: 2024-06-11
115 KB
download

Technical Data

Supply voltage
12 V DC
Operating temperature range
-10°C…+55°C
Standby mode current consumption
500 mA
Max. current consumption
620 mA
Weight
430 g
Maximum humidity
93±3%
Environmental class according to EN50130-5
II
Supported memory cards
microSD, micro SDHC
Enclosure dimensions (width x height x thickness)
196 x 129 x 22 mm
