VERSA IP
Control panel

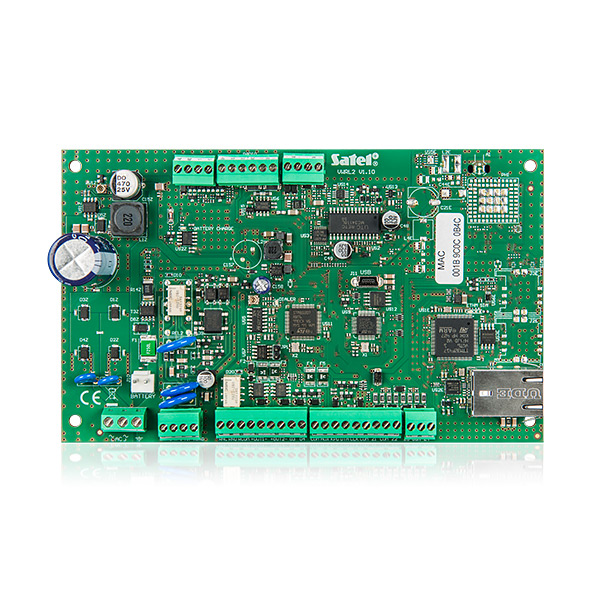

The VERSA IP control panel is designed for protection of small and medium-sized premises. It allows you to create a wired or wireless system, as well as a hybrid one, which combines both these kinds of system. It is compatible with ABAX 2 (ACU-220, ACU-280) and ABAX (ACU-120, ACU-270) wireless systems controllers.
The VERSA IP is the only solution that combines features that were previously only available by using several separate devices. ETHM, INT-VG and INT-AV modules as well PSTN dialer are integrated on its mainboard. As a result, the VERSA IP control panel enables communication via two channels: Ethernet and PSTN, thus ensuring effective transfer of information.
- EN50131 Grade 2 compliance
- 4 programmable wired zones:
- support for NO and NC type detectors, and roller shutter and vibration detectors
- support for EOL and 2EOL configuration
- additional tamper input, NC type
- 5 programmable wired outputs:
- 2 high-current outputs
- 2 low-current outputs, OC type
- 1 relay output
- 3 power outputs
- output for connecting dedicated enclosure-mounted piezoelectric transducer (acoustic signaling)
- maximum number of programmable zones: 30
- maximum number of programmable outputs: 12
- system subdivision into 2 partitions:
- each zone can be assigned to two partitions
- system control by means of:
- LCD or LED keypads
- VERSA-LCDM-WRL, VERSA-KWRL2 wireless keypads
- INT-TSG2, INT-TSH2 touchscreen keypads
- proximity cards
- remote control keyfobs
- integrated PSTN module to enable:
- reporting (SIA, ContactID, etc.)
- voice messaging (8 numbers, 16 messages)
- remote programming (300 bps modem) with DLOADX program
- built-in ETHM module to enable:
- e-mail messaging
- control by means of VERSA CONTROL application offering PUSH notifications
- reporting to monitoring station
- programming with DLOADX program
- built-in voice module:
- nearly 13 minutes for messages to be used in voice menu
- over 4 minutes for 16 telephone notification messages (with message duration up to 16 seconds)
- built-in USB-HID socket
- memory of 2047 events
- capability to handle 30 users and assign to each of them:
- code
- proximity card
- keyfob
- 4 timers to enable automatic:
- arming/disarming partitions
- control of outputs (turning light ON/OFF, watering garden, etc.)
- plug-in terminal blocks
- option of not reporting possible problems with connecting to the SATEL server as a failure
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
Documentation
Software
Certificates
Technical Data
Voice messages
16
Low current programmable outputs rating
50 / 12 VDC mA
Event log
2047
Partitions
2
Timers
4
Power supply rating
2 A

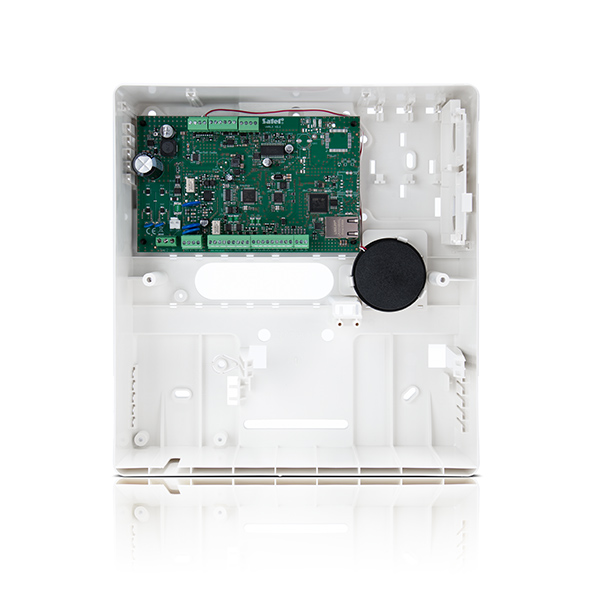

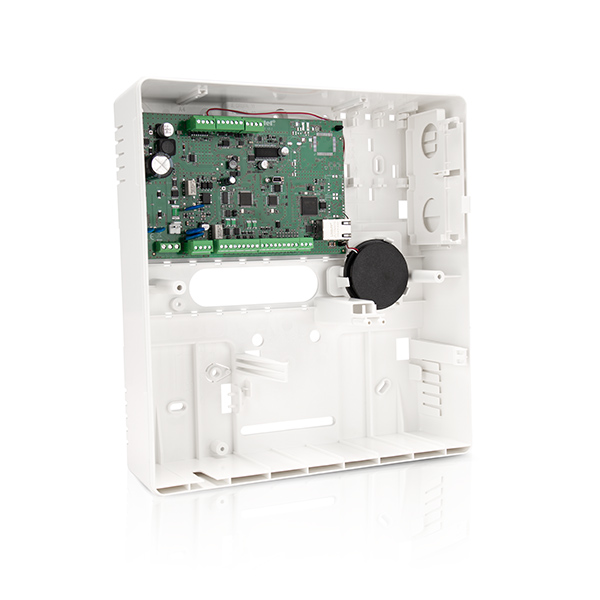

Enclosure dimensions
266 x 286 x 100 mm
Board dimensions
173 x 105 mm
Operating temperature range
-10…+55 °C
Supply voltage (±15%)
18 V AC, 50-60 Hz
Maximum humidity
93±3%
Current consumption from 230 V mains - standby
120 mA
Current consumption from battery - standby
160 mA
Battery failure voltage threshold (±10%)
11 V
Battery cut-off voltage (±10%)
10,5 V
Environmental class according to EN50130-5
II
Maximum current consumption from the 230V network
160 mA
Maximum current consumption from the battery
200 mA
Programmable wired inputs
4
Maximum number of programmable inputs
30
Programmable wired outputs
5
Maximum number of programmable outputs
12
Supplying outputs
3
Communication buses
1
Keypads
up to 6
Security grade according to EN 50131
Grade 2
Current-carrying capacity, AUX output
500 / 12 V DC
Recommended transformer
40 VA
Mass (incl. enclosure and accessories)
1220 g
Users
30
Notification e-mail addresses
8
Text messages
64
Current-carrying capacity of +VR output
200 / 12 V DC
Current-carrying capacity of KPD output
500 / 12 V DC
Current-carrying capacity of programmable relay output
1000 / 24 V DC mA
Current-carrying capacity of programmable high-current outputs
1100 / 12 VDC mA
Output voltage range
10,5 V…14 V DC
Battery charging current
800 mA
Power supply output voltage
12 V DC ±15%
Telephone numbers for notification
8
